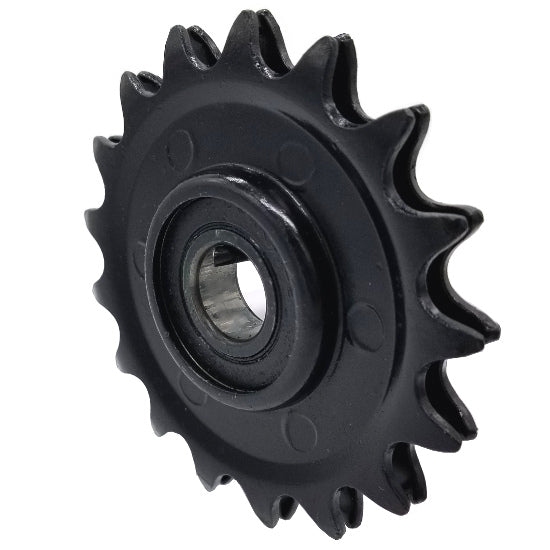

Sprocket Pulley - 3.75'' Dia.- 17mm Bore - Steel

Part Number: 33050017
$2157
...
......
...
  • Bearing Inner Diameter
    0.669"
  • Finish
    Zinc Plate or Paint
  • Number of Teeth
    17
  • Outside Diameter
    3.625"
  • Inside Diameter
    17mm
  • Inside Diameter Exact
    0.669"
  • Component Width
    0.344"
  • Material
    Steel
  • Material Thickness
    0.09"
  • Backside Offset
    0.2362"
  • Frontside Offset
    0.2362"
  • Through Bore
    0.4724"

DESCRIPTION:

This Sprocket is for use as a general purpose pulley for power transmission such as compressors, industrial fans, lawnmowers, snowblowers and electrical motors. It does not come with a bore adapter installed, the inside diameter is equal to the bearing diameter of 17mm. You can choose from the above drop-down menu if you would like a bore adapter inserted for no additional charge.

33050017 features a heavy duty sealed radial single-row bearing.The thick steel construction is designed to be more durable. This part is Zinc-plated or Painted to prevent rust.

Additional Features:
Made of Steel
Works with #50 belts
33050017 has 17 teeth and works with #50 type chains
5/8" pitch

SI-050-017
